Automatic Bottled Beverage Juice Production Hot Bottling Filling Machinery Line for Pet Bottle 200ml-2000ml
Product DescriptionIntroduction:
The machine is for filling green tea,black tea and fruit juice drink and integrates washing,filling and capping together ,and adopts block bottle-neck hanging work state design and filling valve rise-drop design.
It can meet the requirements of hot filling of below 95 degrees Celsius. It adopts man-machine interface touch screen,PLC,transducer ,etc.
Features:
1.Bottles are delivered by suspension type clip bottle mouth conveying structure (except bottle out star wheel), bottle in adopts air conveying device, in the bottle washing station with flexible bottleneck clamp clamping, so that machine is more stable during operation , reliable, high-speed operation to adapt to the requirements of the machine. Simply adjust the conveyor of different bottle height and a small amount of change attachment, so for bottle faster, and effort.
2. Filling machine uses normal pressure filling technology is filling fast, reliable, non-drip, level accuracy. The machine has no bottle no filling characteristics.
3.Juice Filling Machine:Cap arranging device ensure the cover arrange speed, no damage to the cover surface. Comprehensive testing device can guarantee no bottle no cover, lack of cover down, full cover without cover conveying of functions.
4. The Juice Filling Machine main electrical, pneumatic components are imported components.
5. The frequency changing technology is used to adjust the operation speed. The production capacity can be displayed digitally and can be adjusted conveniently.
Machine Pictures

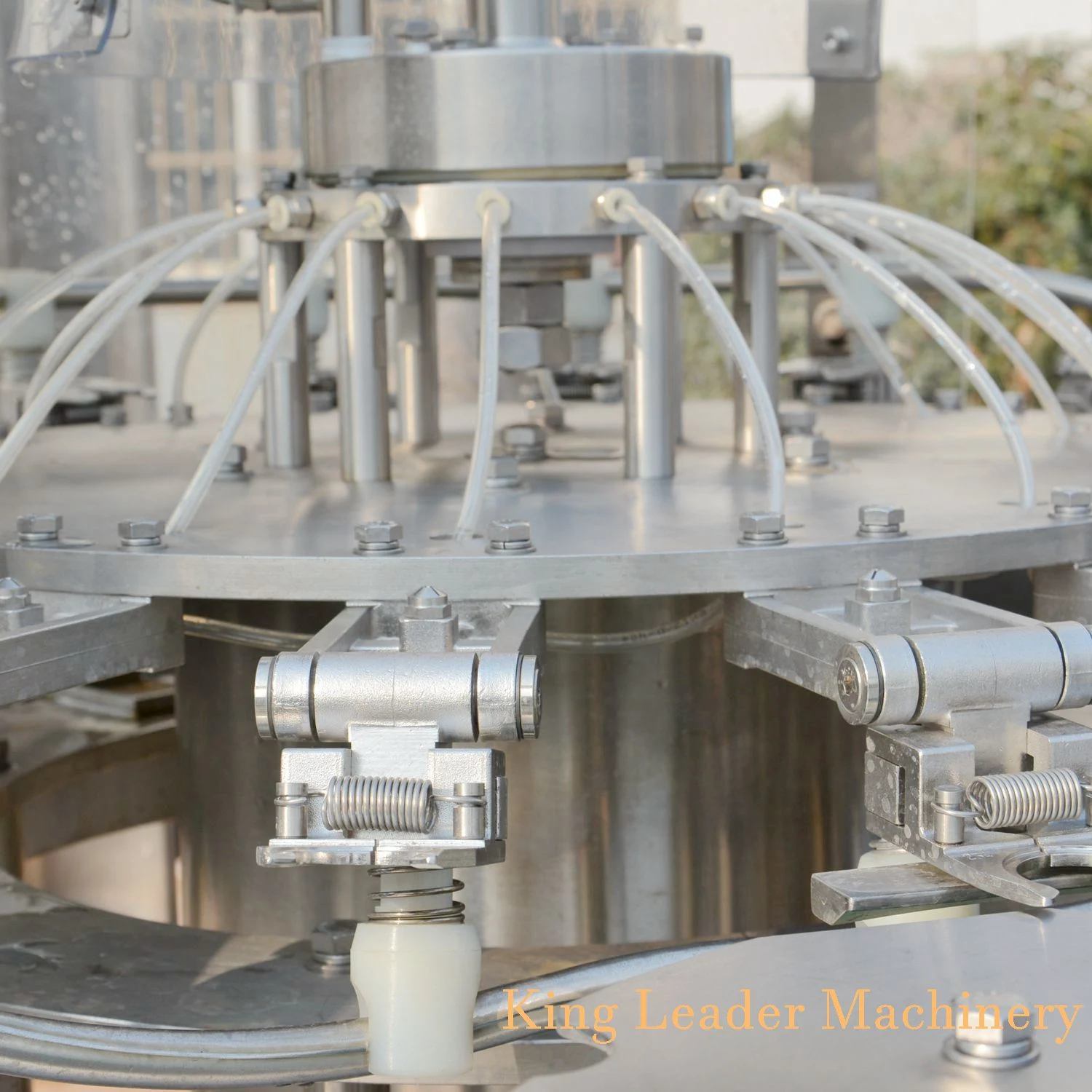

Washing Part
![Automatic Bottled Beverage Juice Production Hot Bottling Filling Machinery Line for Pet Bottle 200ml-2000ml](https://img3.grofrom.com/cceng/75b3719a6d2c6234b2ea30f43efd5a62.webp)

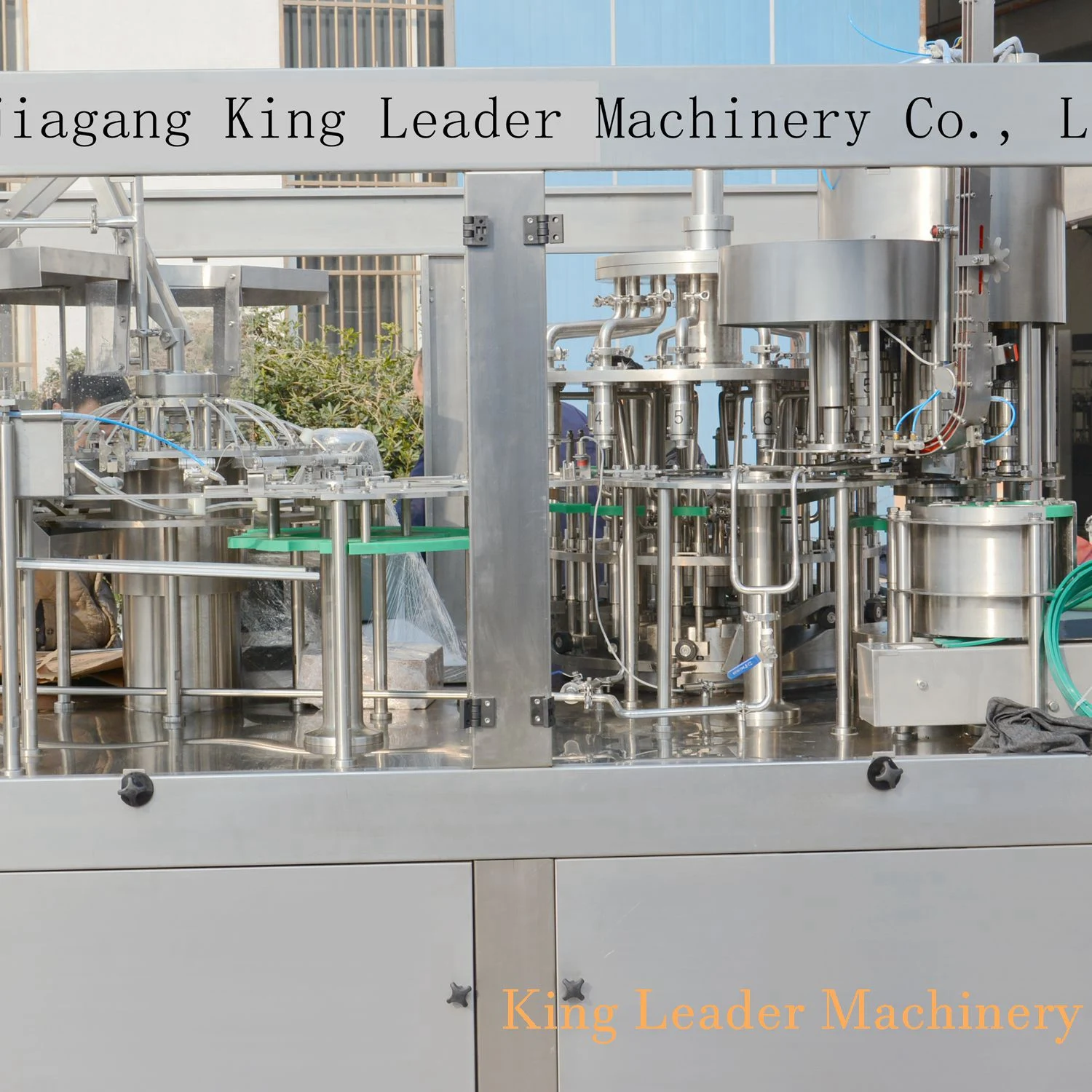

Filling Part
![Automatic Bottled Beverage Juice Production Hot Bottling Filling Machinery Line for Pet Bottle 200ml-2000ml](https://img3.grofrom.com/cceng/64e63edd75fe54a7c5465d0567a58fba.webp)
Capping Part
![Automatic Bottled Beverage Juice Production Hot Bottling Filling Machinery Line for Pet Bottle 200ml-2000ml](https://img3.grofrom.com/cceng/aac7f821229ad88e4136f4d583ac4562.webp)
Technical parameter:
Model | RCGF16-12-6 | RCGF18-18-6 | RCGF24-24-8 | RCGF32-32-8 | |
Production Capacity(600ml)(b/h) | 2000 | 3000-5000 | 6000-8000 | 9000-12000 | |
Way of Filling | gravity filling technology | ||||
Filling Precision | Liquid level from the bottle≤5mm | ||||
Feedback Consumption | ≤10% | ||||
Polyester Bottle Standard(mm) | (Bottle Diameter)50-92;(Height):150-310 | ||||
Suitable Cap Shape | (Plastic Screw Cap) | ||||
Water Pressure of Washing Bottle(Mpa) | 0.18 | ||||
Water Consumption for Water Bottle(Kg/h) | 800 | 1600 | 2500 | 3500 | |
Gas Source Pressure(Mpa) | 0.6 | ||||
Gas Consumption(m3/min) | 0.3 | 0.3 | 0.4 | 0.5 | |
Total Power(kW) | 3 | 3.5 | 4.5 | 6 | |
Total Weight(Kg) | 3000 | 4000 | 5000 | 6000 | |
Dimension(L×W×H)(mm) | 2200×1800×2300 | 2300×2000×2300 | 3000×2200×2800 | 4000×2600×2800 |
